PVC Tape Contact

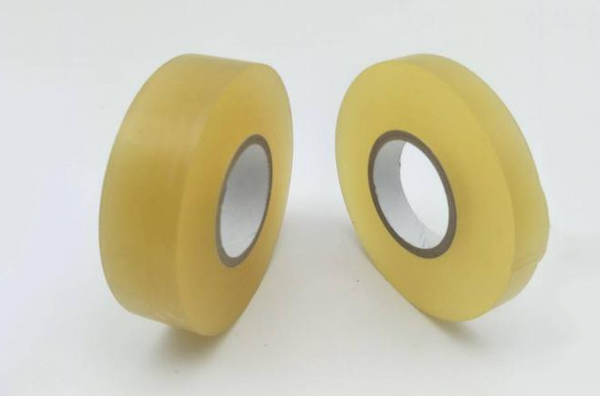

Protection PVC Tape
Used to restore primary insulation and provide mechanical protection after wire connections. Typically applied as the outermost insulating layer following crimping of wire terminals or splicing of conductors.
Products detail&application
1. Insulation Sealing for Cable Joints and Terminals
Used to restore primary insulation and provide mechanical protection after wire connections. Typically applied as the outermost insulating layer following crimping of wire terminals or splicing of conductors.
2. Wire Harness Bundling
In automotive, appliance, industrial control cabinet, and aerospace wire harness manufacturing, PVC tapes bundle dispersed wires into organized bundles, providing insulation, abrasion resistance, oil resistance, and mechanical protection. High-temperature resistant PVC tapes are required for automotive engine compartments.
Technical Parameters
Total thickness (μm) | Glue type | 180° Peel strength (N/25mm) | Tensile strength（N/25mm） | Holding power (h) | Elongation (%) | Thermal stability (℃) | Short-term thermal stability (℃) | Size (mm×m) |
130 | Rubber | ≥2 | ≥40 | ≥1 | ≤150 | -10-80 | 100 1h | 1250×250 |
140 | Rubber | ≥2.5 | ≥40 | ≥1 | ≤150 | -10-80 | 100 1h | 50×50 |
Storage Conditions
Store in a cool, dry environment at room temperature (Temperature: -5°C to 40°C, Relative Humidity: 40-65% RH). Avoid direct sunlight and exposure to heat sources.
Shelf Life: 12 months
Related Applications
Tolerance Ranges
Parameter | Tolerance |
Material Thickness | ±0.005 mm |
Total Thickness | ±0.01 mm |
Width | ±0.5 mm |
Length | ±0.2 m |
Related Products
-

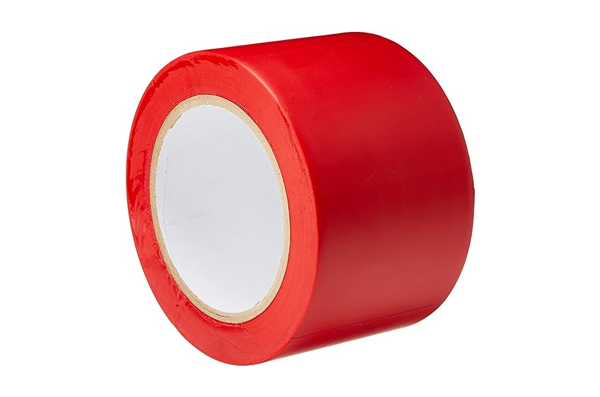

Warning PVC TapeWarning PVC tapes are durable, pressure-sensitive tapes made from polyvinyl chloride (PVC) and designed with bold, pre-printed safety patterns (e.g., yellow/black stripes, red/white diagonals, or custom text). They provide highly visible warnings and are used for floor marking, hazard identification, and safety zone delineation in industrial, commercial, and public spaces.Learn More -
