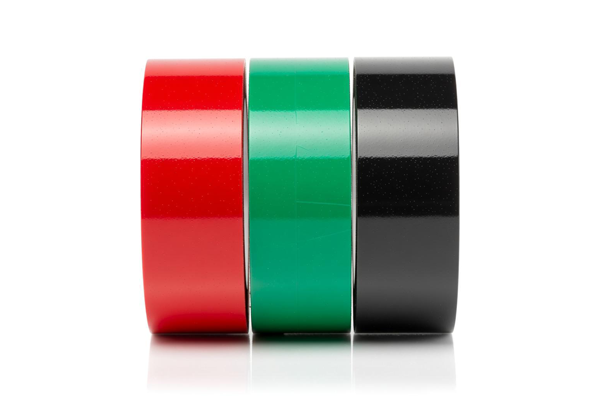

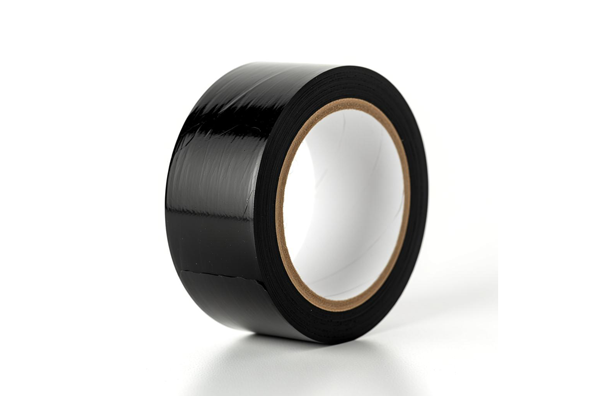

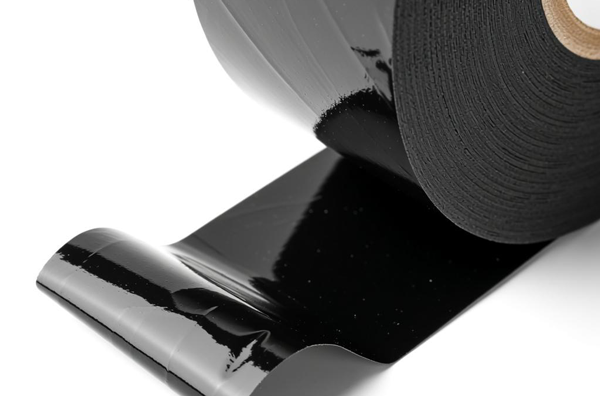

Insulated PVC Electrical Tape

Used to restore primary insulation and provide mechanical protection after wire connections. Typically applied as the outermost insulating layer following crimping of wire terminals or splicing of conductors.

Contact

Products detail&application

1. Insulation Sealing for Cable Joints and Terminals
Used to restore primary insulation and provide mechanical protection after wire connections. Typically applied as the outermost insulating layer following crimping of wire terminals or splicing of conductors.

2. Wire Harness Bundling
In automotive, appliance, industrial control cabinet, and aerospace wire harness manufacturing, PVC tapes bundle dispersed wires into organized bundles, providing insulation, abrasion resistance, oil resistance, and mechanical protection. High-temperature resistant PVC tapes are required for automotive engine compartments.

Technical Parameters

Total thickness (μm)	Glue type	180° Peel strength (N/25mm)	Tensile strength（N/25mm）	Holding power (h)	Elongation (%)	Thermal stability (℃)	Short-term thermal stability (℃)	Permittivity (KV/mm)	Volume resistivity (Ω·cm)	Size (mm×m)
120	Rubber	≥3	≥60	≥1	≤180	-10-80	100 1h	≥39.37	≥10¹²	17×15
130	Rubber	≥3	≥60	≥1	≤180	-10-80	100 1h	≥39.37	≥10¹²	20×15
160	Rubber	≥4.5	≥80	≥1	≤180	-10-80	100 1h	≥39.37	≥10¹²	16×20

Storage Conditions

Store in a cool, dry environment at room temperature (Temperature: -5°C to 40°C, Relative Humidity: 40-65% RH). Avoid direct sunlight and exposure to heat sources.

Shelf Life: 6 months

Related Applications

Tolerance Ranges

Parameter	Tolerance
Material Thickness	±0.005 mm
Total Thickness	±0.01 mm
Width	±0.5 mm
Length	±0.2 m
