PE Tape Contact

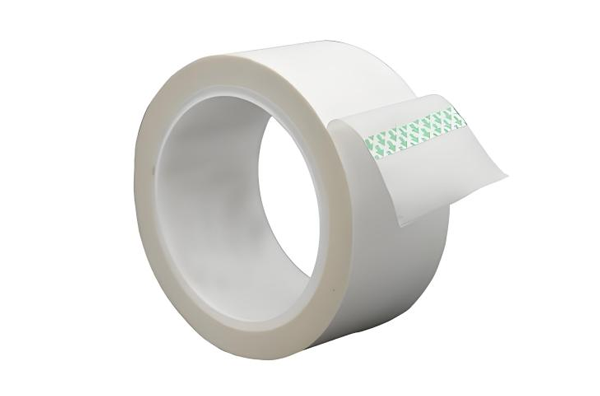

PE Protective Tape
Employing a rubber-based adhesive and a specialized polyurethane-bondable release coating on the backing, this tape achieves secure adhesion to polyurethane foam substrates. It is specifically designed for bonding and protection within refrigerator and freezer cooling systems, ensuring reliable adhesion between condenser piping and enclosure panels while providing exceptional protection for the entire refrigeration and insulation system.
Products detail&application
Employing a rubber-based adhesive and a specialized polyurethane-bondable release coating on the backing, this tape achieves secure adhesion to polyurethane foam substrates. It is specifically designed for bonding and protection within refrigerator and freezer cooling systems, ensuring reliable adhesion between condenser piping and enclosure panels while providing exceptional protection for the entire refrigeration and insulation system.
Technical Parameters
Total thickness (μm) | Glue type | 180° Peel strength (N/25mm) | Tensile strength（N/25mm） | Initial tack (#) | Holding power (h) | Elongation (%) | Thermal stability (℃) | Short-term thermal stability (℃) | Size (mm×m) |
65 | Rubber | ≥7.5 | ≥30 | ≥8 | ≥24 | ≥200 | -40-60 | 80 1h | 25×50 |
80 | Rubber | ≥8 | ≥50 | ≥8 | ≥24 | ≥200 | -40-60 | 80 1h | 30×50 |
Storage Conditions
Store in a cool, dry environment at room temperature (Temperature: -5°C to 40°C, Relative Humidity: 40-65% RH). Avoid direct sunlight and exposure to heat sources.
Shelf Life: 12 months
Related Applications
Tolerance Ranges
Parameter | Tolerance |
Material Thickness | ±0.005 mm |
Total Thickness | ±0.01 mm |
Width | ±0.5 mm |
Length | ±0.2 m |
