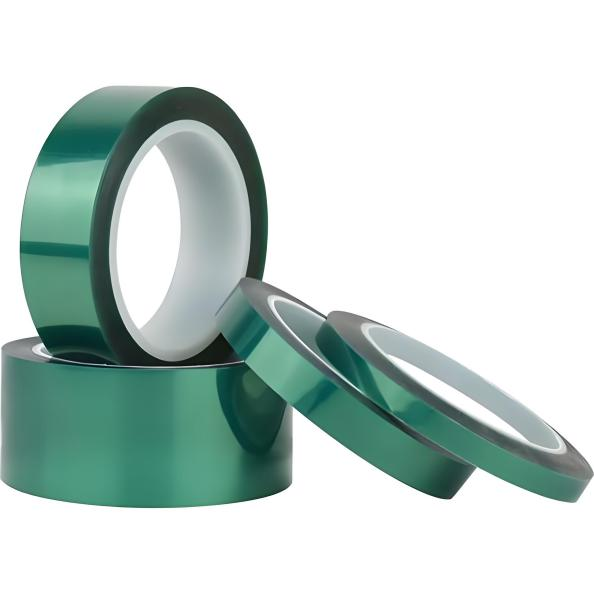

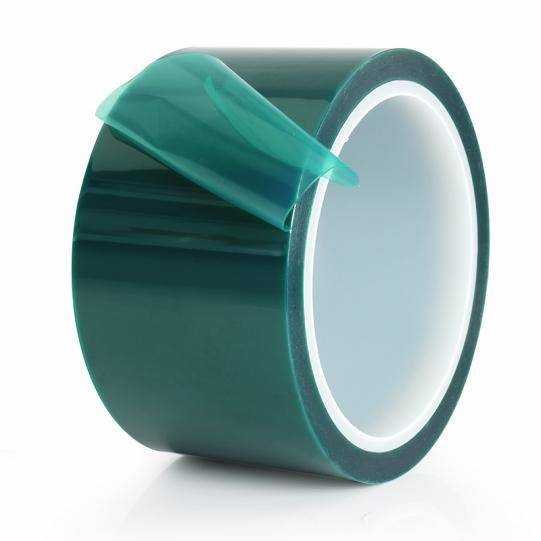

High-Temperature PET Silicone Adhesive Tape

This adhesive utilizes high-temperature resistant silicone, capable of maintaining its adhesive properties under temperatures up to 200°C without degradation. It also exhibits excellent electrical insulation characteristics.

Contact

Products detail&application

Component Fixation and Protection Across Industries: Provides secure bonding for components on circuit boards (PCBs & FPCs), offering protection and stability during soldering processes to prevent displacement or damage.

Applications in Lithium Battery Packs: Insulates battery tabs, bundles individual cells, and secures modules in place, with inherent flame-retardant properties for enhanced safety.

High-Temperature Masking for Painting Applications: Serves as a protective masking agent during high-temperature spray painting, shielding sensitive areas from overspray and thermal exposure.

Technical Parameters

Total thickness (μm)	Glue type	Color	180° Peel strength (N/25mm)	Tensile strength（N/25mm）	Initial tack (#)	Holding power (h)	Elongation (%)	Thermal stability (℃)	Short-term thermal stability (℃)	Permittivity (KV/mm)	Volume resistivity (Ω·cm)
55	Silicone	Green	≥3.5	≥70	≥10	≥2	≤130	150	200 1h	≥5	≥10¹⁵
60	Silicone	Green	≥4	≥75	≥10	≥2	≤130	150	200 1h	≥5	≥10¹⁵
60	Silicone	Brown	≥4	≥70	≥10	≥2	≤130	150	200 1h	≥5	≥10¹⁵
70	Silicone	Brown	≥5	≥80	≥10	≥2	≤130	150	200 1h	≥5	≥10¹⁵

Storage Conditions

Store in a cool, dry environment at room temperature (Temperature: -5°C to 40°C, Relative Humidity: 40-65% RH). Avoid direct sunlight and exposure to heat sources.

Shelf Life: 6 months

Related Applications

Tolerance Ranges

Parameter	Tolerance
Material Thickness	±0.005 mm
Total Thickness	±0.01 mm
Width	±0.5 mm
Length	±0.2 m
