Aluminum Foil Tape with Release Paper Liner Contact

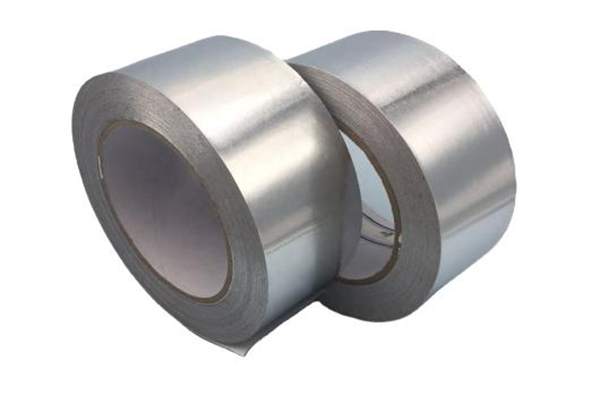

Aluminum Foil Tape with Release Paper Liner
This product is constructed with aluminum foil as the primary substrate, coated with a pressure-sensitive adhesive, and laminated to a release-treated backing material.
Product Details Features
Enhanced Storage Convenience: Compared to liner-free tapes, it is easier to store and less prone to deformation or damage under compression.
Exceptional Weather Resistance: Inherits the inherent properties of metallic aluminum, offering outstanding resistance to high/low temperatures, UV radiation, and aging.
Broad Applicability: The metal substrate ensures excellent thermal conductivity, making it suitable for diverse applications.
Flame Retardancy: Demonstrates inherent flame-resistant properties. When combined with flame-retardant adhesives, it provides enhanced fire resistance and effectively prevents fire propagation.
Primary Applications
1. Refrigeration Systems: Long-term thermal insulation and sealing for evaporators, condenser pipelines, and cooling systems in refrigerators and freezers.
2. HVAC and Plumbing: Sealing indoor air conditioning ducts, water heaters, and thermal pipelines.
3. Fire Protection in Transportation: Flame-retardant protection for cables in high-speed rail/subway carriages.
Fire-resistant sealing for duct joints and insulation cotton seams to suppress fire spread (when using flame-retardant adhesive variants).
Technical Parameters
Total thickness (μm) | Adhesive Type | Liner | Size(W/D) (mm×m) | 180°Peel strength (N/cm) | Initial Tack | Holding power (h) | Tensile strength (N/cm) |
90 | Water based | White paper | 1216×1000 | ≥4 | ≥15# | ≥24 | ≥10 |
150 | Flame retardant | Kraft paper | 75×50 | ≥7.5 | ≥15# | ≥24 | ≥ 20 |
140 | Rubber | White paper | 75×50 | ≥7.5 | ≥15# | ≥24 | ≥ 20 |
180 | Solvent-based | Yellow paper | 440×200 | ≥7.5 | ≥15# | ≥24 | ≥ 30 |
200 | Solvent-based | Glassine paper | 100×50 | ≥7.5 | ≥15# | ≥24 | ≥ 30 |
160 | Water-based | White paper | 300×150 | ≥6 | ≥15# | ≥24 | ≥ 45 |
Special Parameters
Aluminum thickness (μm) | Aluminum backing coating | Adhesive Type | Liner | Size(W/D) (mm×m) | 180°Peel strength (N/cm) | Initial Tack | Holding power (h) | Tensile strength (N/cm) |
90 | Ink/ Print logo | Water-base | White paper | 1216×1000 | ≥4 | ≥15# | ≥24 | ≥10 |
Store in a cool, dry environment at room temperature (Temperature: -5°C to 40°C, Relative Humidity: <80% RH). Avoid direct sunlight and exposure to heat sources.
Shelf Life
Water-based & Flame-Retardant Adhesives: 6 months
Solvent-based & Rubber Adhesives: 12 months
Related Applications
Tolerance range
Aluminum Foil Thickness: ±0.005mm,
Total Thickness: ±0.01mm,
Width: ±0.5mm,
Length: ±0.2m
