Reinforced Aluminum Foil Tape

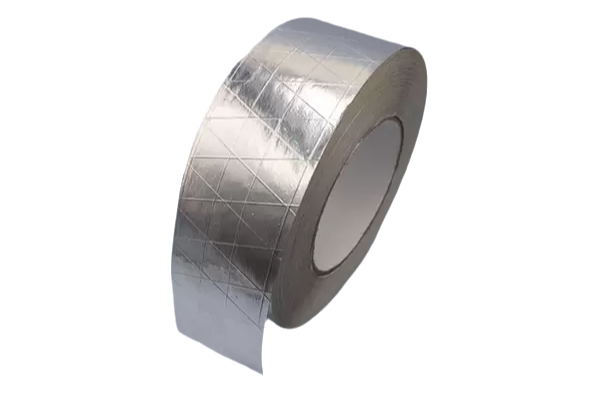

This product is a composite tape constructed by laminating an aluminum foil layer, a reinforcement scrim material (polyester or fiberglass), and a wood pulp or grass pulp paper substrate. It is coated with high-performance pressure-sensitive adhesive (PSA) and lined with release paper or film.

Contact

Product Details Features

Enhanced Tensile Strength: The embedded fiberglass or polyester scrim significantly improves tensile strength compared to pure aluminum foil tapes, while maintaining flexibility and toughness similar to woven mesh tapes.

Cost-Effectiveness: Offers a more economical alternative to woven fiberglass mesh tapes without compromising critical performance.

Multi-Layer Protection: The composite structure provides excellent barrier properties against moisture, dust, and aging, ensuring long-term durability.

Primary Applications

Thermal Insulation Wrapping: Used for insulating and protecting pipelines in HVAC, industrial plumbing, and refrigeration systems, similar to fiberglass cloth aluminum foil tape.

Technical Parameters

Total

thickness

(μm)

Composite substrate(g/㎡)

Adhesive

Type

Liner

Size(W/D)

(mm×m)

180°Peel strength

(N/cm)

Initial Tack

Holding power

(h)

Tensile strength

(N/cm)

130

Scrim-Reinforced kraft Paper

Water-based

Kraft paper

75×50

≥4

≥ 10 #

≥ 24

≥ 40

150

BOPP Laminate with Fiber-Reinforced Kraft Paper

Solvent-based

White paper

50×50

≥6

≥ 10 #

≥ 24

≥ 40

Storage Conditions

Store in a cool, dry environment at room temperature (Temperature: -5°C to 40°C, Relative Humidity: <80% RH). Avoid direct sunlight and exposure to heat sources.

Shelf Life

Water-based & Flame-Retardant Adhesives: 6 months

Solvent-based : 12 months

Related Applications

Tolerance range

Aluminum Foil Thickness: ±0.005mm,
Total Thickness: ±0.01mm,
Width: ±0.5mm,
Length: ±0.2m
