Woven Fiberglass Mesh Aluminum Foil Tape Contact

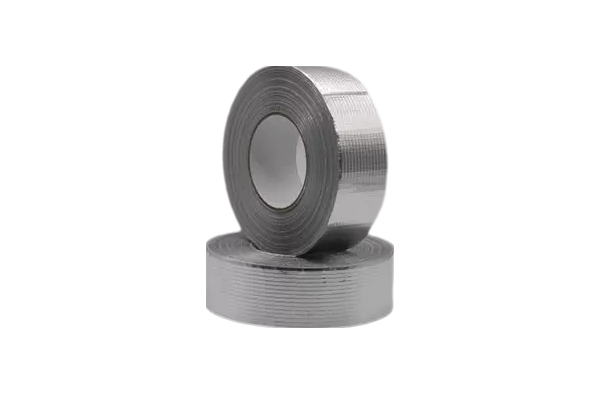

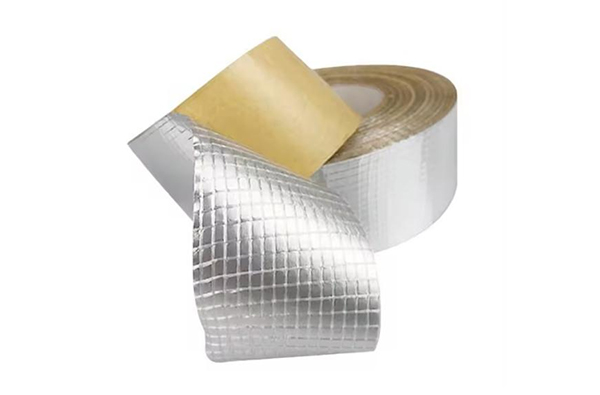

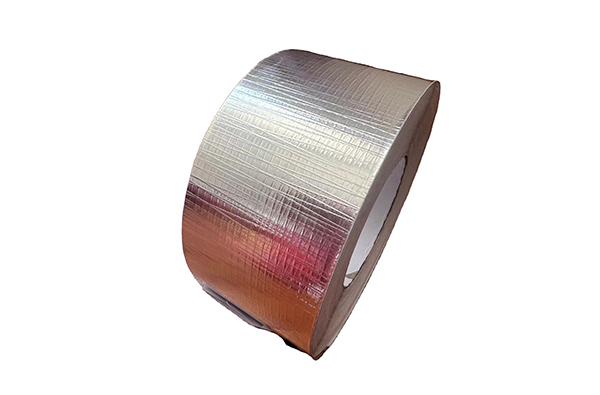

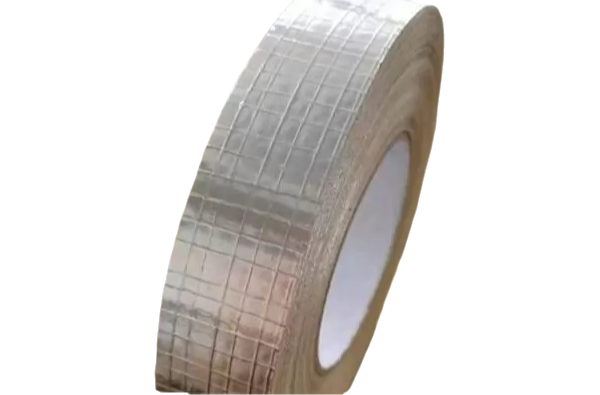

Woven Fiberglass Mesh Aluminum Foil Tape
This product is a composite tape constructed by laminating aluminum foil to a visibly woven fiberglass mesh substrate (with distinct warp and weft patterns), followed by coating with high-performance pressure-sensitive adhesive (PSA) and a release paper or film liner.
Product Details Features
Moderate Tensile Strength: Compared to standard fiberglass cloth tape, the reduced density of the mesh structure results in lower tensile strength but greater flexibility.
Enhanced Flexibility: The open mesh design provides superior conformability, making it ideal for irregular surfaces and corners.
Moisture Barrier: The PE-laminated layer offers complete resistance to water penetration. However, the PE material is inherently flammable unless flame-retardant additives are incorporated.
Primary Applications
Similar to standard fiberglass cloth aluminum foil tapes, it is used for:
Thermal insulation wrapping for pipelines and ducts.
Protective covering for outdoor equipment corners and curved surfaces.
Technical Parameters
Total thickness (μm) | Weaven pattern | Adhesive Type | Liner | Size(W/D) (mm×m) | 180°Peel strength (N/cm) | Initial Tack | Holding power (h) | Tensile strength (N/cm) |
130 | 3×3 | Solvent-based | Kraft paper | 120×100 | ≥6 | ≥ 10 # | ≥ 24 | ≥ 40 |
130 | 5×5 | Solvent-based | Yellow paper | 50×50 | ≥6 | ≥ 10 # | ≥ 24 | ≥ 40 |
120 | 5×5 | Water-based | Yellow paper | 1220×900 | ≥4 | ≥ 10 # | ≥ 24 | ≥ 40 |
Storage Conditions
Store in a cool, dry environment at room temperature (Temperature: -5°C to 40°C, Relative Humidity: <80% RH). Avoid direct sunlight and exposure to heat sources.
Shelf Life
Water-based & Flame-Retardant Adhesives: 6 months
Solvent-based : 12 months
Related Applications
Tolerance range
Aluminum Foil Thickness: ±0.005mm,
Total Thickness: ±0.01mm,
Width: ±0.5mm,
Length: ±0.2m
