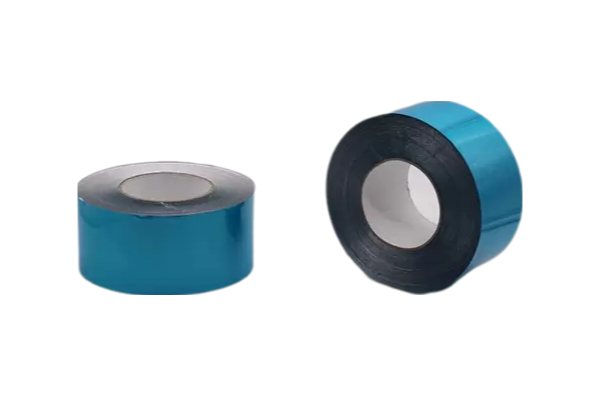

VC Heat-sealable Aluminum Foil Tape with Release Paper Liner

This product is constructed with aluminum foil as the primary substrate. The backside of the foil is coated with a VC (Vinyl Composite) material, while the front side is coated with a pressure-sensitive adhesive and laminated to a release-treated backing material.

Contact

Product Details Features

Heat-Sealing Capability: The VC backing layer thermally bonds to substrates under heat and pressure, forming a tight, permanent composite structure.

Barrier Properties: Effectively blocks moisture, air, oils, and UV radiation, protecting internal components from environmental degradation.

Durability: Exhibits excellent resistance to high/low temperatures, chemical corrosion, and aging.

Primary Applications

Thermal sealing and fixation of internal heating resistor wires in household appliances.

Insulation and fixation for series/parallel connections of battery cells in packs in new energy batteries. Sealing between battery module covers and casings.

Technical Parameters

Total thickness (μm)	Aluminum backing coating	Adhesive Type	Liner	Size(W/D) (mm×m)	180°Peel strength (N/cm)	Initial Tack	Holding power (h)	Tensile strength (N/cm)
150	VC	Solvent-based	PET	440×200	≥7.5	≥15#	≥24	≥30
185	VC	Solvent-based	PET	70×50	≥7.5	≥15#	≥24	≥20
160	VC	Rubber	Glassine paper	34×600	≥7.5	≥15#	≥24	≥20

Storage Conditions

Store in a cool, dry environment at room temperature (Temperature: -5°C to 40°C, Relative Humidity: <80% RH). Avoid direct sunlight and exposure to heat sources.

Related Applications

Tolerance range

Aluminum Foil Thickness: ±0.005mm,
Total Thickness: ±0.01mm,
Width: ±0.5mm,
Length: ±0.2m
