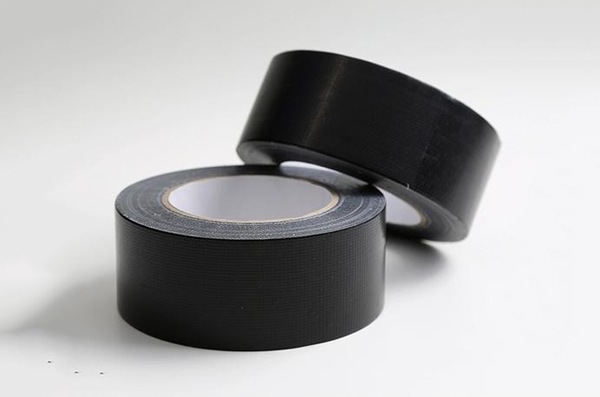

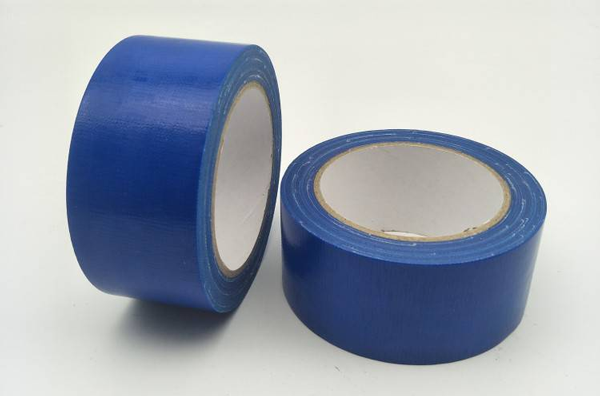

Hot Melt Duct Tape
Hot melt adhesives provide exceptional initial tack and long-term bonding strength, making them ideal for critical applications in construction and HVAC systems. They are used for seam sealing to enhance airtightness and weather resistance, as well as for securing insulation materials in piping systems.
Products detail&application
Hot melt adhesives provide exceptional initial tack and long-term bonding strength, making them ideal for critical applications in construction and HVAC systems. They are used for seam sealing to enhance airtightness and weather resistance, as well as for securing insulation materials in piping systems.
Technical Parameters
Total thickness (μm) | Glue type | 180° Peel strength (N/25mm) | Tensile strength（N/25mm） | Initial tack (#) | Holding power (h) | Elongation (%) | Thermal stability (℃) | Short-term thermal stability (℃) | Size (mm×m) |
150 | Hot melt | ≥15 | ≥50 | ≥10 | ≥24 | ≤18 | -10-70 | 90 1h | 50×50 |
170 | Hot melt | ≥15 | ≥60 | ≥14 | ≥24 | ≤18 | -10-70 | 90 1h | 45×50 |
Storage Conditions
Store in a cool, dry environment at room temperature (Temperature: -5°C to 40°C, Relative Humidity: 40-65% RH). Avoid direct sunlight and exposure to heat sources.
Shelf Life: 12 months
Related Applications
Tolerance Ranges
Parameter | Tolerance |
Material Thickness | ±0.005 mm |
Total Thickness | ±0.01 mm |
Width | ±0.5 mm |
Length | ±0.2 m |
